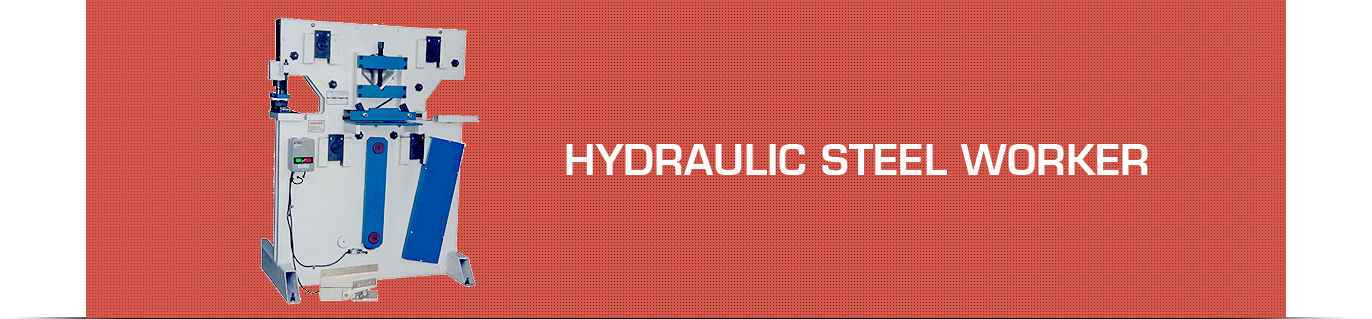

Hydraulic Steel Worker
Introduction
Hydraulic Steel Worker is very useful for Steel Fabricators, Body Builders, Wagon Builders, Tower Makers and Ship Builders. It is a multipurpose 4-station machine to shear MS Angle, MS Channel, MS Round & Square bar, MS Plate, punch hole in MS Plate. Vee and Square notches can be done on angles, channels and plates.
The machines are well-engineered and robust designed and manufactured for long working life. All the components are made of alloy steel duly hardened and ground. All toolings are made from best quality die steel and are easily changeable.
The Hydraulic system is activated by shielded flexible foot control. Accurate power inching and limit switches are provided for tool setting and stroke control.
Optional Tooling
- Rod Shearing
- Triangle Notcher
- Chopper Notcher
- Channel Shear
- Pipe Notcher
- Brake Attachment
| TECHNICAL SPECIFICATION OF HYDRAULIC STEEL WORKER | ||||
| Rated capacity (Punching) Throat depth Maximum Capacity (Punching) Open height Shut height Stroke |
27Ton 170mm 20mm dia-8mm plate 205mm 180mm |
60Ton 180mm 25mm dia – 12.7mm plate 205mm 170mm 30mm |
80Ton 260mm 27mm dia – 18mm plate 225mm 180mm 45mm |
110Ton 260mm 27mm dia – 25mm plate 225mm 180mm 45mm |
| BAR SHEAR Rounds/squares Flat maximum thickness Flat maximum width |
25mm 10mm x 75mm 5mm x 150mm |
25mm 20mm x 100mm 12mm x 240mm |
25mm 20mm x 240mm 12mm x 340mm |
32mm 25mm x 250mm 20mm x 350mm |
| ANGLE SHEAR Maximum size |
50mm x 50mm x 6mm | 100mm x 100mm x 6mm | 127mm x 127mm x 9mm | 150mm x 150mm x 13mm |
| CROPPER/NOTCHER OPTION | Not Available | 50mm x 75mm x 8mm | 65mm x 100mm x 13mm | 65mm x 100mm x 13mm |
| BRAKE OPTION | Not Available | 6mm thick x 180mm wide | 6mm thick x 280mm wide | 6mm thick x 300mm wide |
| CHANNEL SHEAR Maximum size |
Not Available | 100 mm x 50 mm (Standard channel) |
100mm x 50mm (Standard channel) |
150mm x 75mm (Standard channel) |
| Hydraulic Tank Capacity | 30 Litres | 35 Litres | 200 Litres | 200 Litres |
| MOTOR STANDARD | 3 HP, 3 Phase, 440V, 50 Hz & 1440 rpm |
5 HP, 3 Phase, 440V, 50 Hz & 1440 rpm |
7.5HP, 3 Phase, 440V, 50Hz & 1440 rpm |
10 HP, 3 Phase, 440V, 50 Hz & 1440 rpm |
| OVER ALL DIMENSION OF MACHINE Base Height |
750mm x 830mm 1395mm |
810mm x 925mm 1650mm |
1235mm x 1270mm 1670mm |
1235 mm x 1270 mm 1670 mm |
| Weight (in Approx.) | 600 Kg | 1200 Kg | 1450 Kg | 2000 Kg |
Note:
* Technical Specifications are subject to modifications without notice
* These above mentioned load capacities are for mild steel
